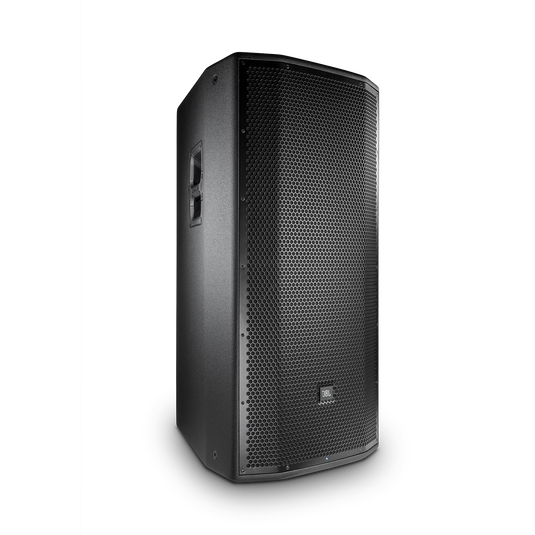

JBL PRX835

Loudest-in-class Sound Reinforcement System with easy Wi-Fi Control

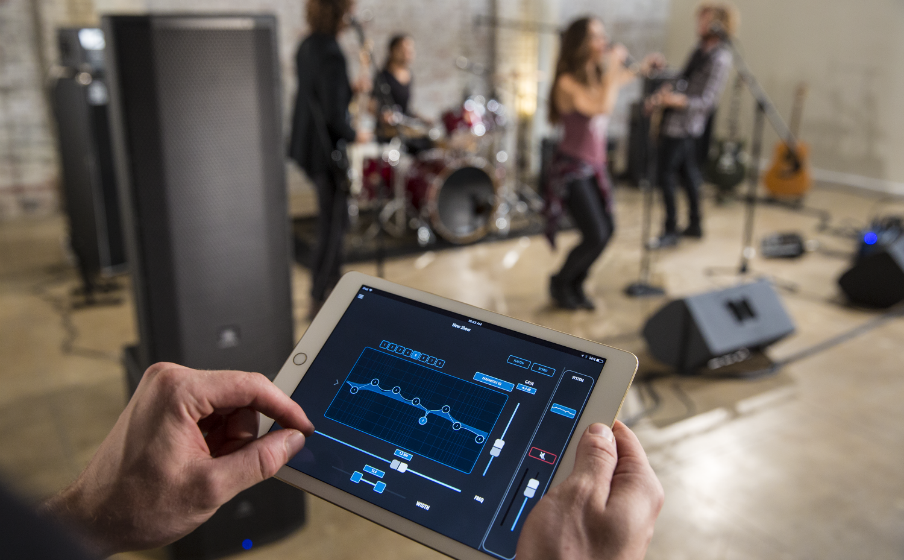

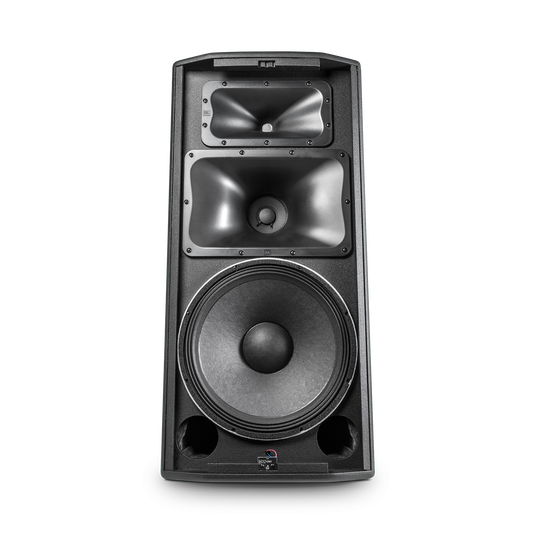

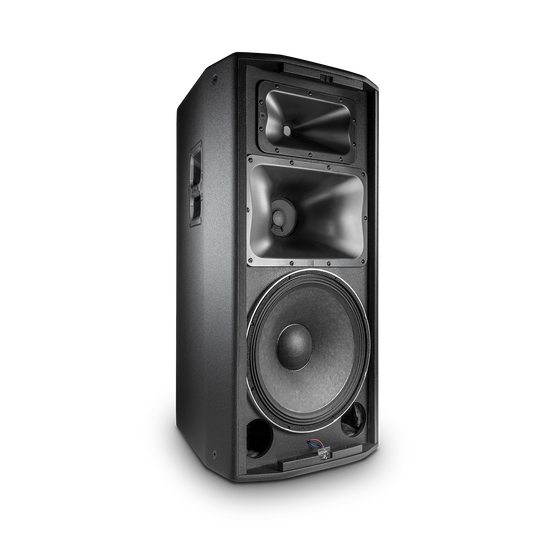

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs. The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.

Características generales

Patrón de cobertura (nominal)

90° x 50°

Respuesta de frecuencia Hz (±3 dB)

39 - 20,000

SPL máximo (dB pico)

138

Potencia nominal (W, continua)

750

Potencia nominal (W, pico)

1500

Medidas

Profundidad (pulg)

21.2

Profundidad (mm)

539.0

Altura (en)

36.9

Altura (mm)

938.0

Peso (kg)

34.9

Peso (libras)

77.0

Anchura (en)

17.5

Ancho (mm)

446.0

Design

Finish

Obsidian DuraFlex™ finish

Características

Wi-Fi incorporado

Sí

Transducer Differential Drive JBL

Sí

M10 suspension points

Sí

Mobile app available for iOS and Android

Sí

1 x PRX835

1 x IEC Cable

1 x User's Guide
