Stage XD-6

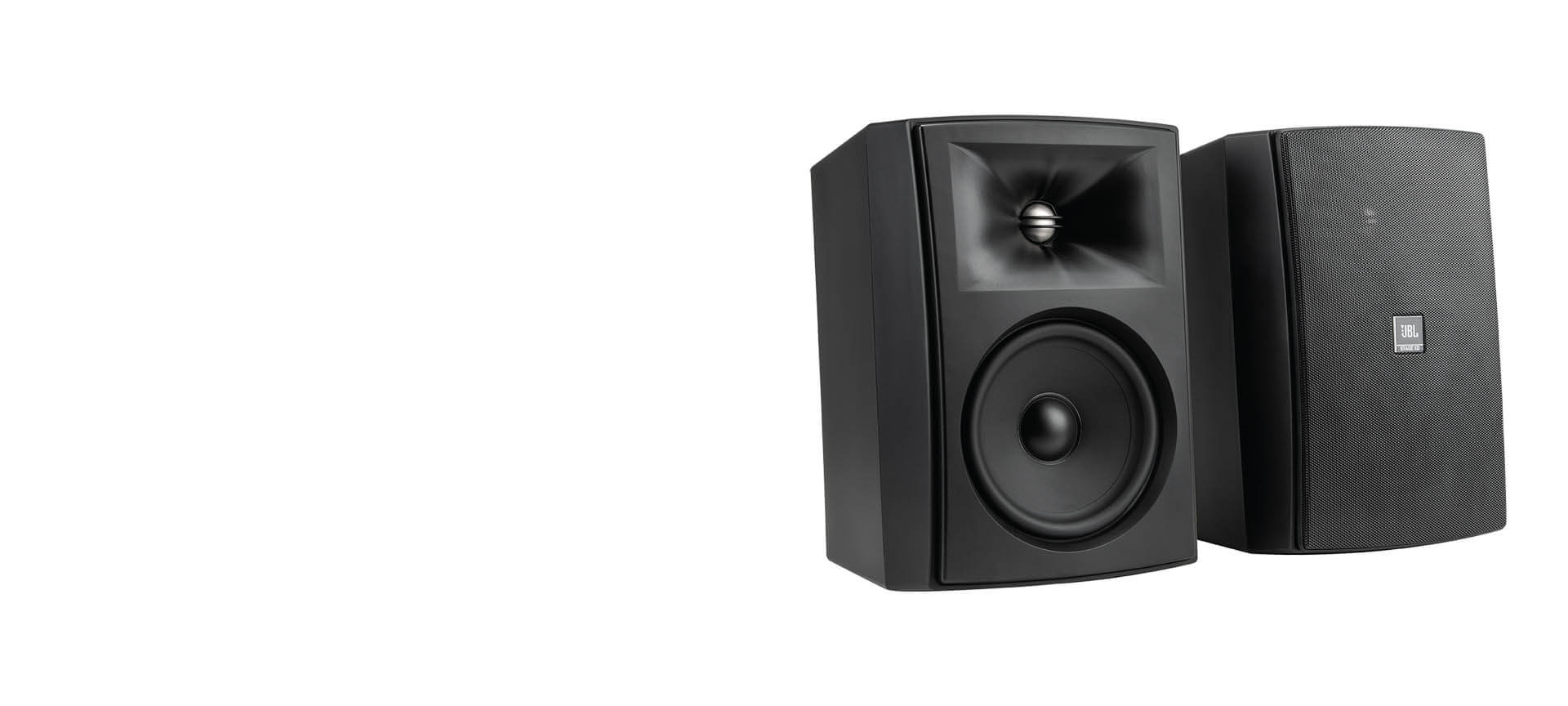

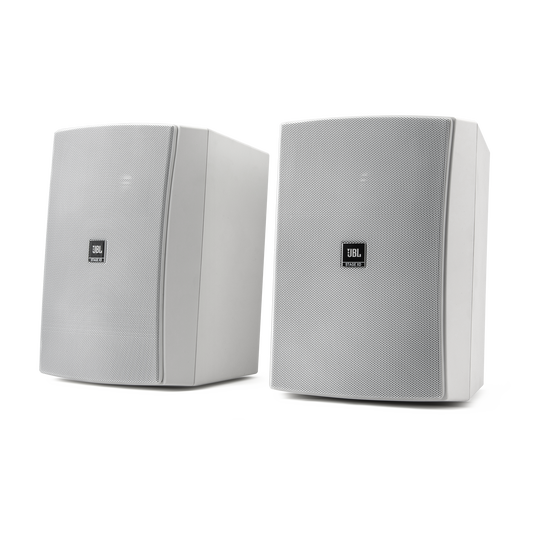

Featuring a 6.5" (165mm) Polypropylene Graphite Filled Cone Wooferand a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate. Pair Angled - 1605x1605.png?sw=537&sfrm=png "Stage XD-6 - Black - Hero")

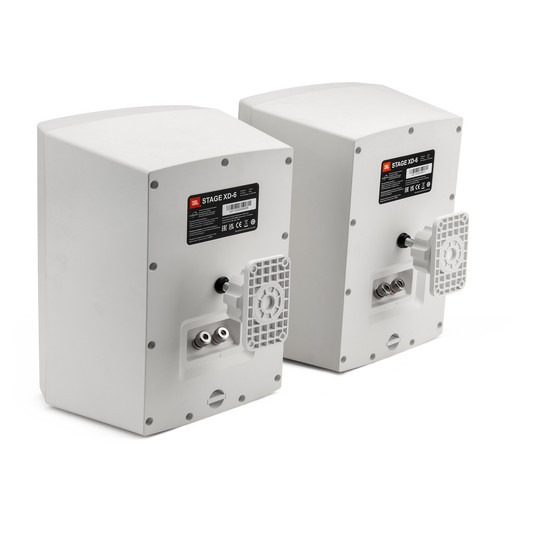

 - Rear with Mount - 1605x1605.png?sw=537&sfrm=png "Stage XD-6 - Black - Back")

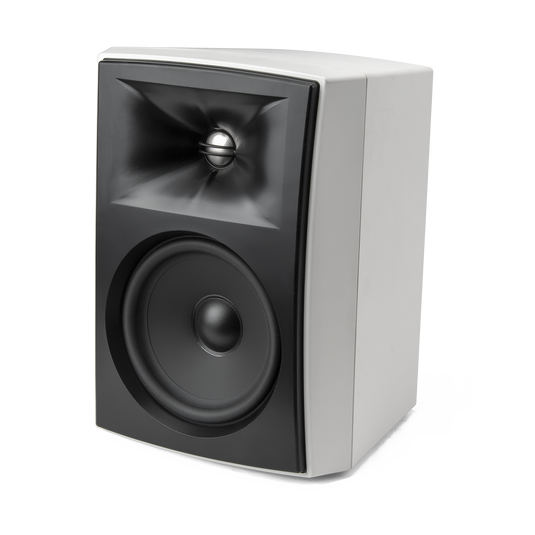

 Single No Grille Angled - 1605x1605.png?sw=537&sfrm=png "Stage XD-6 - Black - Left")

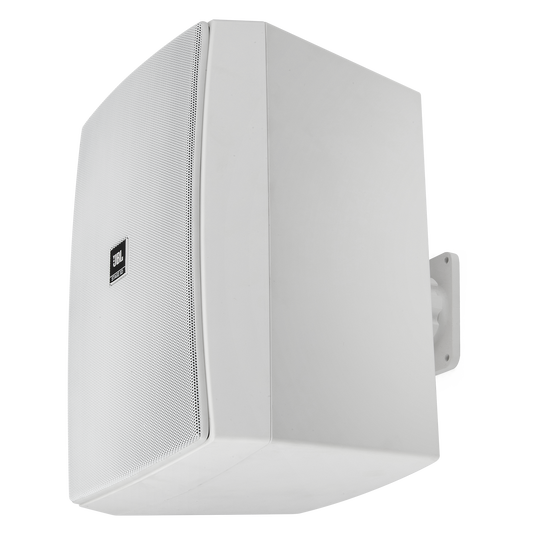

 - Side with Mount - 1605x1605.png?sw=537&sfrm=png "Stage XD-6 - Black - Right")
Características

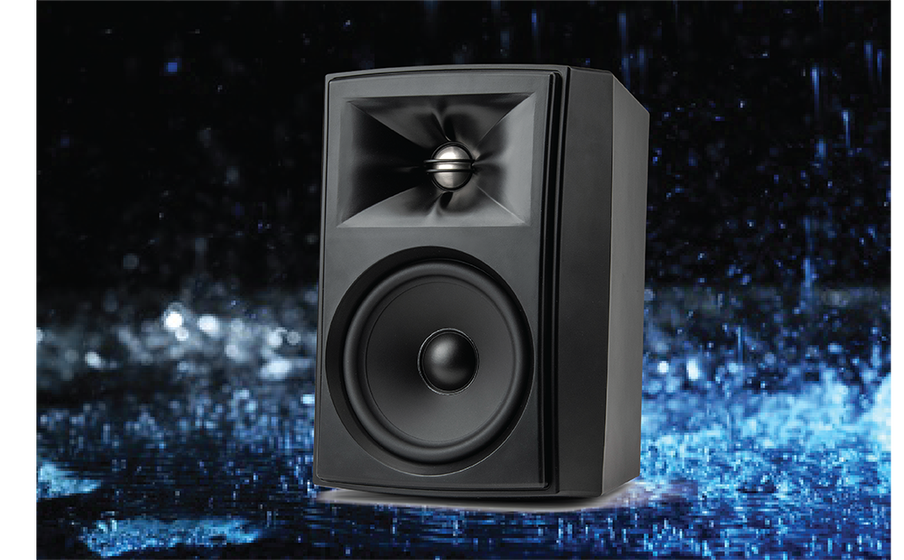

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

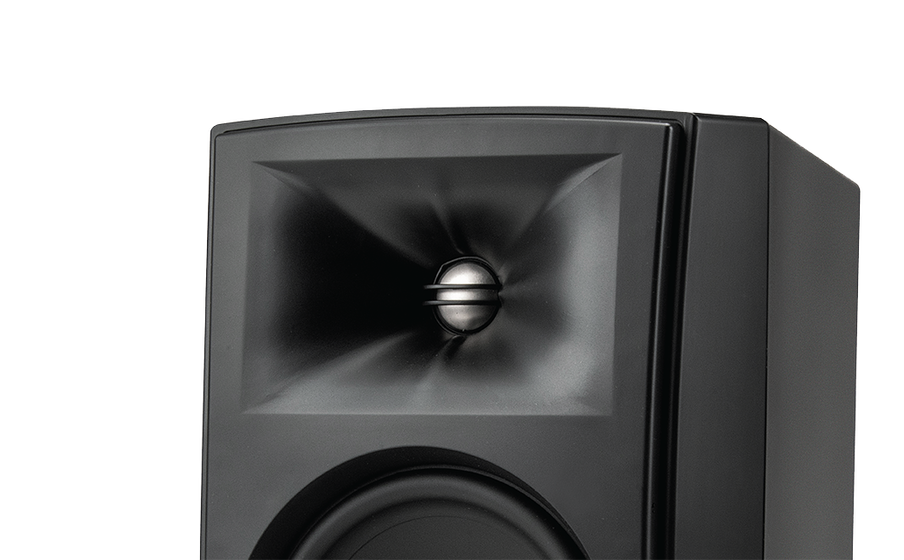

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

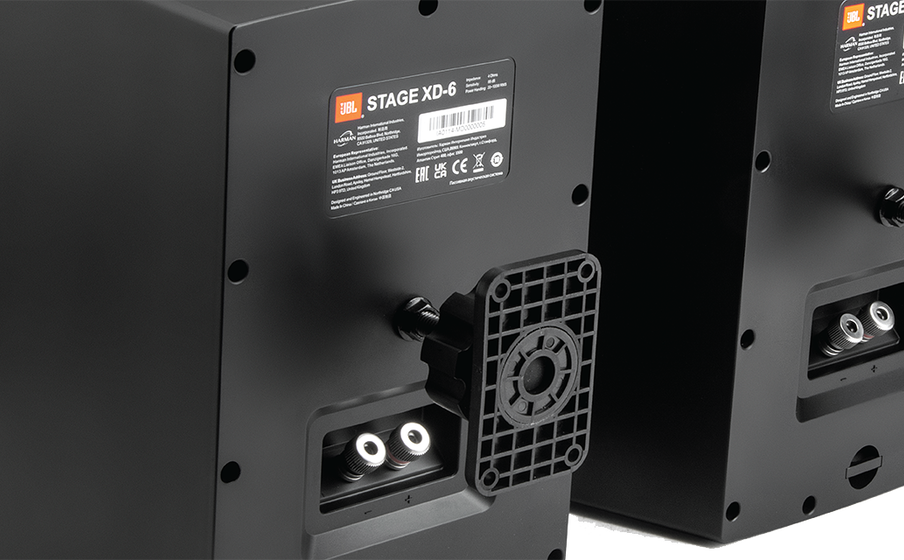

Included wall-mount bracket allows for easy installation and angle adjustment

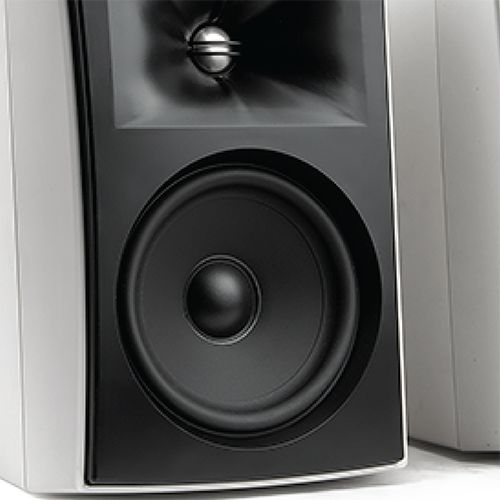

Polypropylene Graphite Filled Cone Woofer

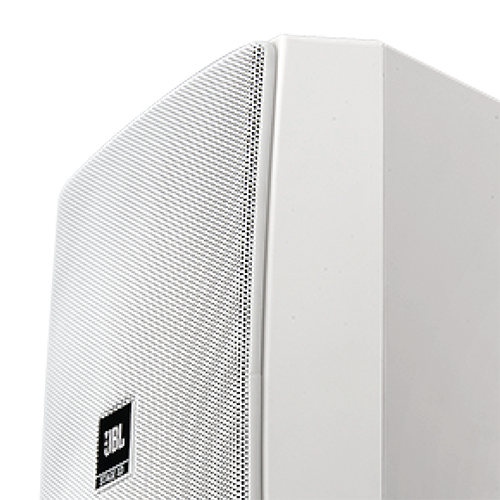

Zero bezel magnetically attached grilles

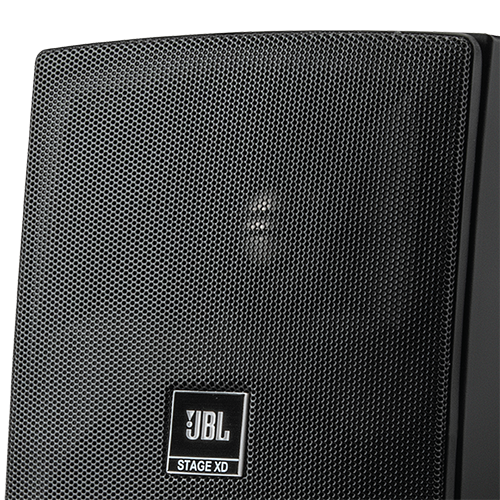

Rotatable logo for horizontal and vertical applications
Detalles y descargas
N.º de artículo JBLXD6BLK
Características generales
Product Type
2-way 6.5" (165mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating
IP67
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
6.5" (165mm) Polypropylene Cone Woofer
Nominal Impedance
6 ohms
Sensitivity (2.83V@1m)
88dB
Recommended Amplifier Power
20-100W RMS
Frequency Response (-6dB On-Axis)
55Hz-25kHz
Crossover Frequency
2500K
Operating Temperature
-31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD)
11.8in (299mm) x 8.7in (221.8mm) X 7.7in (194mm)
Product Weight
2.9lbs (6.5kg)
Wall Mount Extension
2.8in (71mm)
Beauty Carton Dimensions (HxWxD)
14.7in (373mm) x 19.6in (496mm) X 10.9in (276mm)
Beauty Carton Weight
15.5lbs (7kg)
Beauty Carton Quantity
1pr
Master Carton Dimensions (HxWxD)
15.5in (393mm) x 33.4in (848mm) X 20.1in (510mm)
Master Carton Weight
48.5lbs (22kg)
Master Carton Quantity
3pr
