L10 Classic

L10cs Classic Series Subwoofer

With a 250W RMS built in amplifier driving the 10-inch (250mm) down firing woofer, the L10cs is sure to provide plenty of low frequency support to a wide variety of audio systems. From 2 channel loudspeakers and Integrated music systems to home theater, the L10cs adds depth to music, and impact to movies and video games. Available in Natural and Black Walnut, the L10cs complements a wide variety of JBL loudspeakers and seamlessly blends with your décor.

Características generales

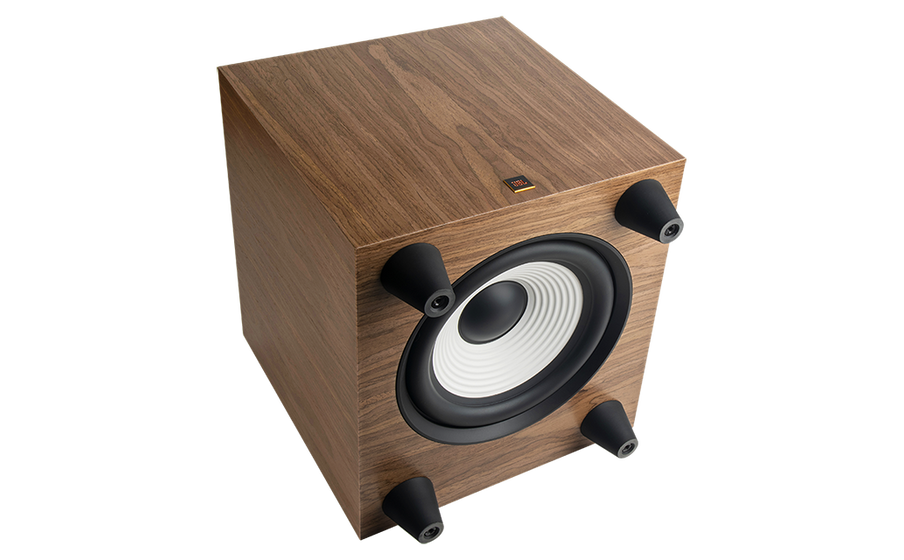

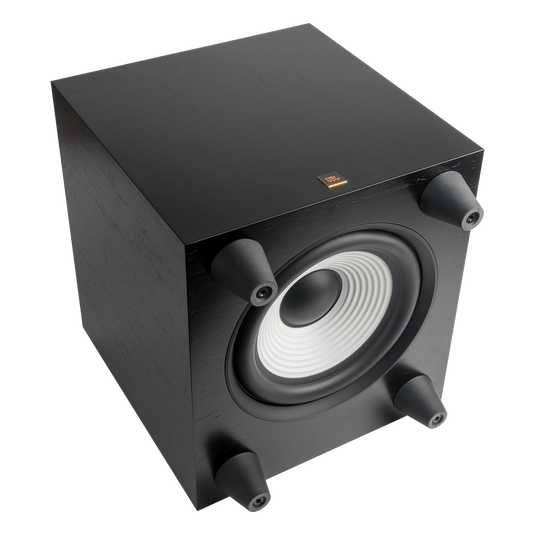

Low-frequency Transducer

10-inch (250mm) Polycellulose Cone Woofer

Amplifier Power

Amplifier Power 500W Dynamic

250W RMS

Frequency Response

32Hz - 150Hz

Crossover Frequencies

50Hz – 150Hz (variable) 24dB/octave

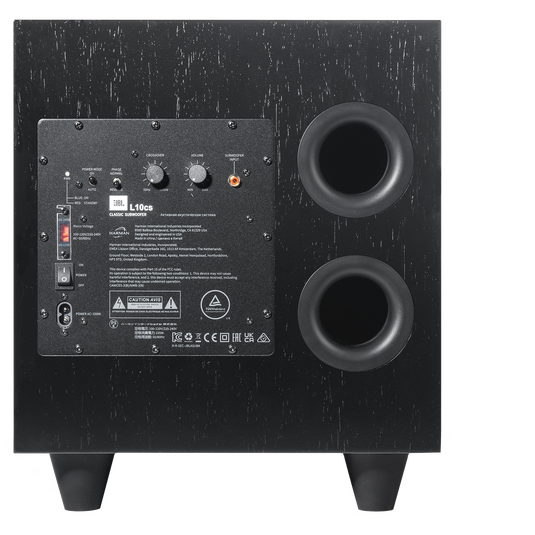

Controls

Auto Power, Crossover, Output Level, Phase, AC Voltage Selection

Connections

LFE (RCA-type)

Enclosure Type

Bass-Reflex via Rear-Firing Tuned Ports

Power Requirement

120V, 60Hz (USA); 220V -240V, 50/60Hz (EU) - Selectable via switch

Power Consumption (Idle/Full/Power)

<0.5W (standby) / 335W/2A (max – 230V) / 335W/4A (max – 120V)

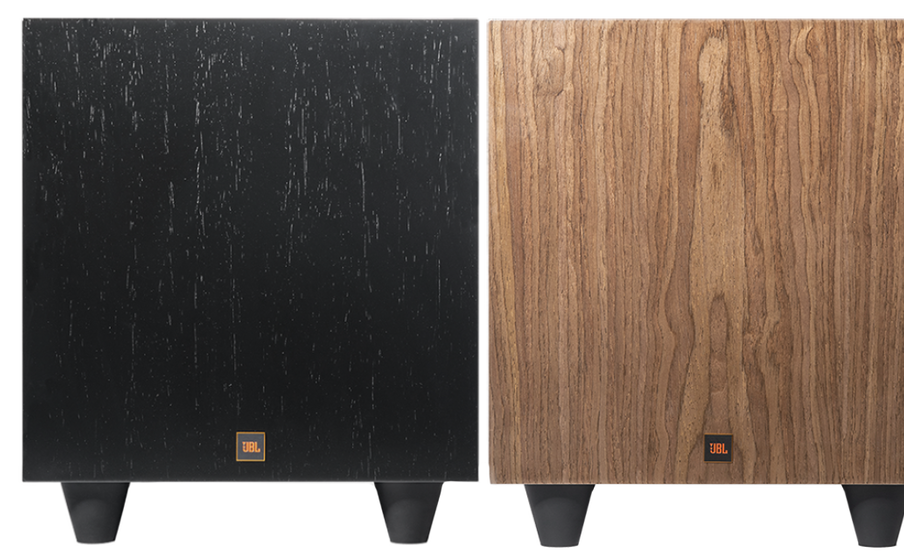

Cabinet Finish

Cabinet Finish Natural Walnut Wood Veneer

Black Walnut Wood Veneer

Dimensions (H x W x D)

Dimensions (H x W x D) 390mm x 335.4mm x 395.2mm

15.4-inch x 13.3-inch x 15.6-inch

Weight

31lbs (14.1kg)
