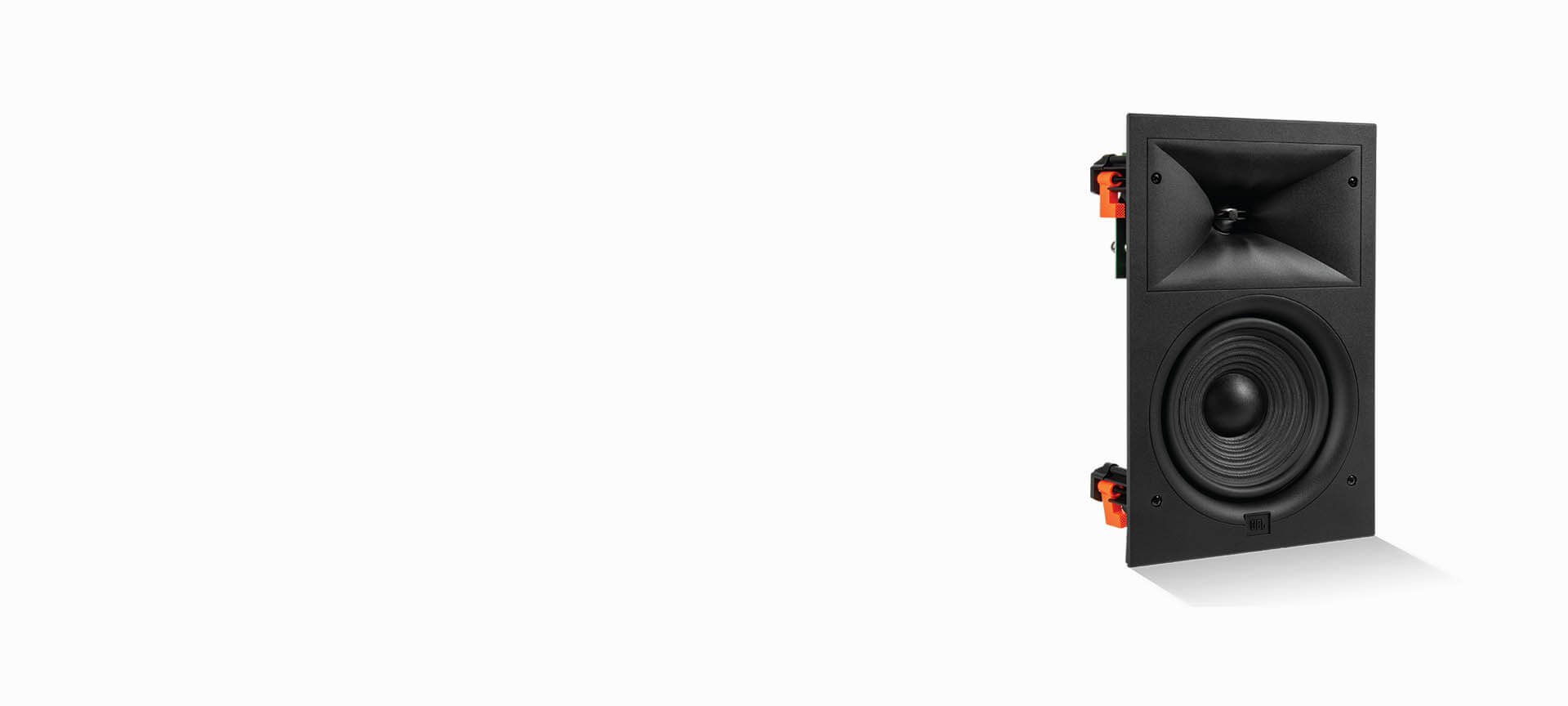

Stage 260W
- AGOTADO

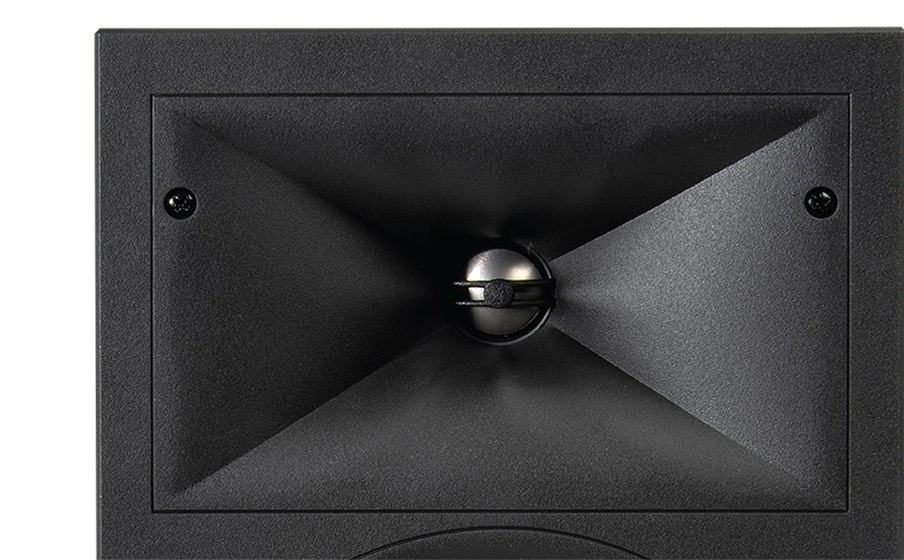

- 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

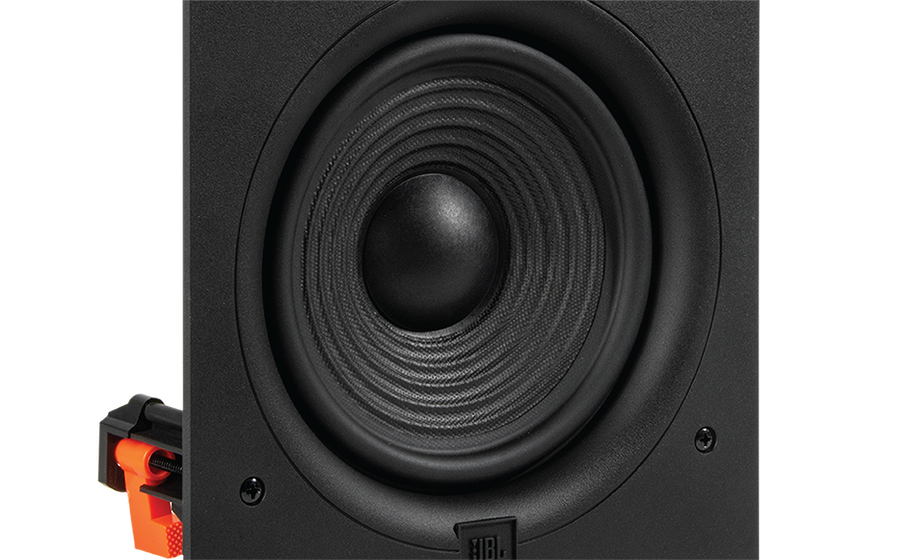

- 6.5" (165mm) Polycellulose cone woofer

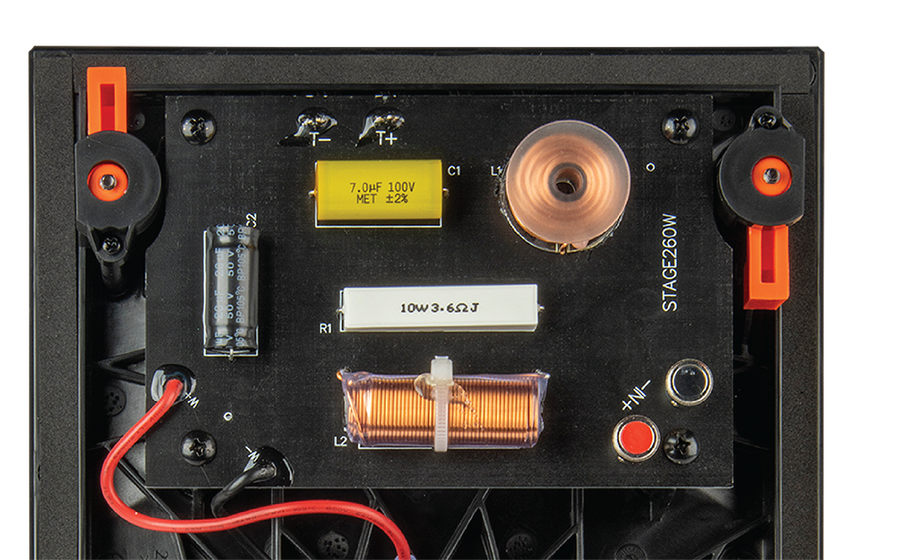

- Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
- Rigid Baffle design with acoustic smoothing for improved transducer integration

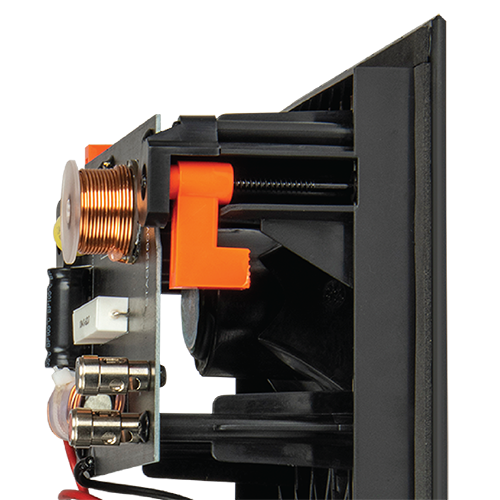

- XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

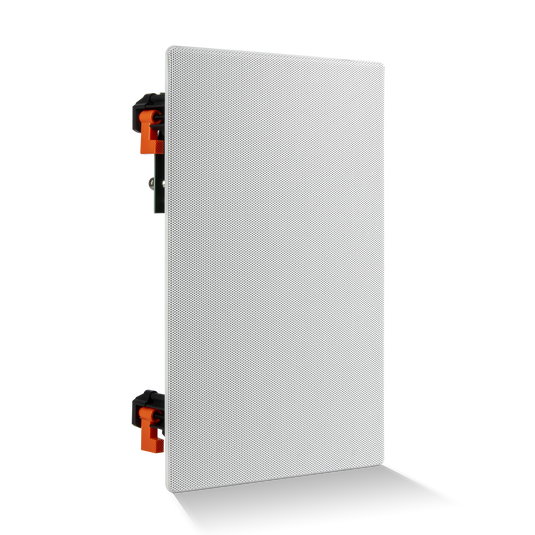

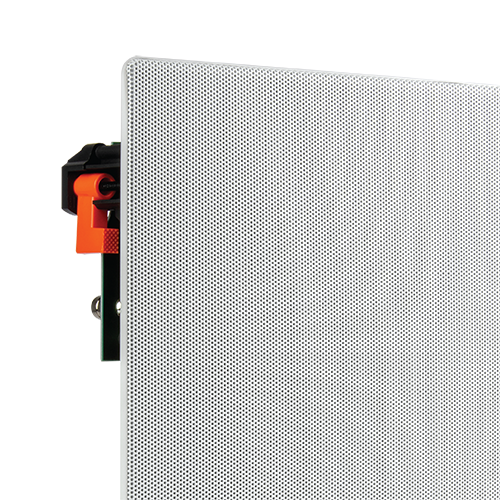

- Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
¡Envío gratis en compras mayores a $1,500! *Aplica solamente con envío Express
ups.changezipcode ups.edit
Producto actualmente no está disponible.
- AGOTADO
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
6.5" (165mm) Polycellulose cone woofer
Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
Características

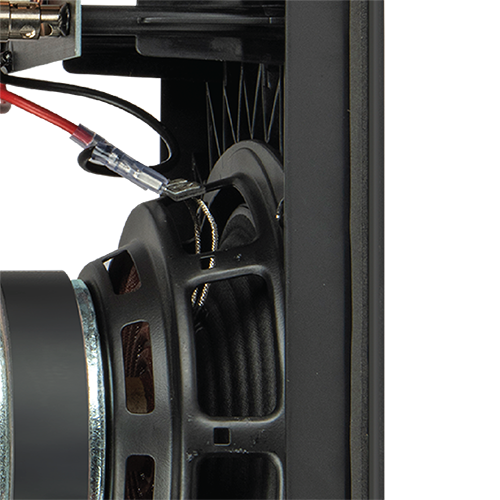

Rigid Baffle design with acoustic smoothing for improved transducer integration
XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Detalles & Descargas
Item#: JBL260W
Stage 260W

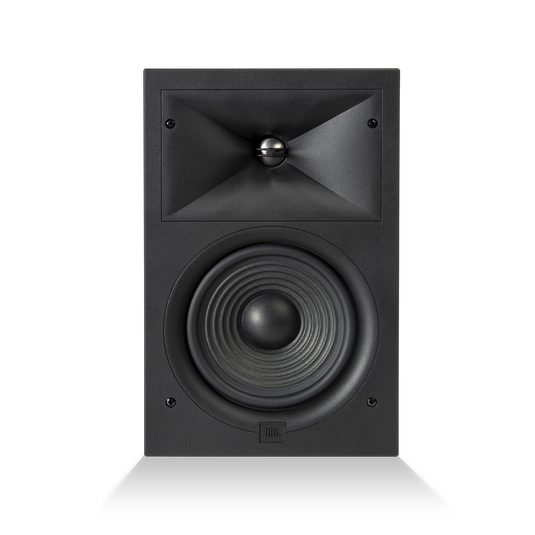

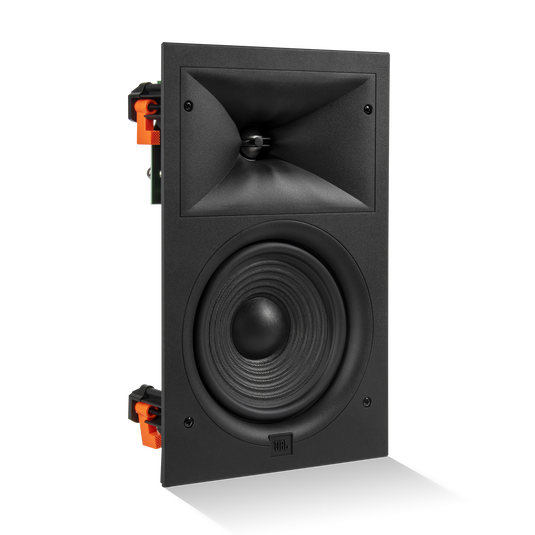

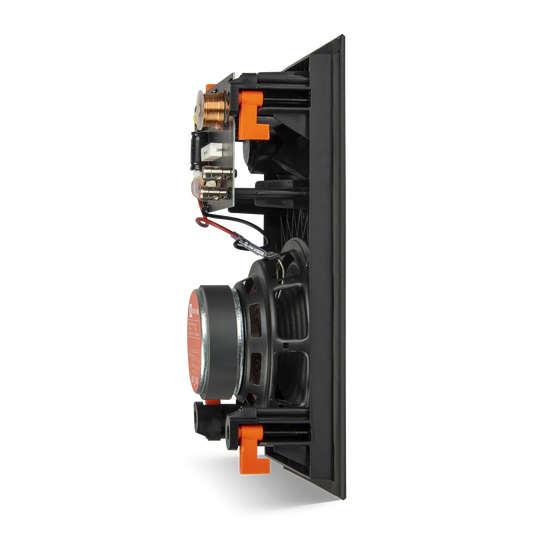

The Stage 260W has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Características generales
- High Frequency Transducer
- 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
- Low Frequency Transducer
- 6.5" (165mm) Polycellulose cone woofer
- Recommended Amplifier Power (Full Range)
- 20-100W RMS
- Frequency Response
- 50Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m)
- 87dB
- Nominal Impedance
- 8ohm
- Crossover Frequency
- 1900Hz
- Inputs
- Nickel-plated spring-loaded connectors
- Grille Dimensions
- H 13.3in (339mm) x W 8.5in (217mm)
- Cutout Dimensions
- H 12.2in (311mm) x W 7.2in (184mm)
- Mounting Depth
- 3.6in (92mm)
- Product Weight (Kg)
- 2.2Kg
- Shipping Carton Dimensions
- L 15.6in (396mm) x W 10.8in (274mm) x H 5.1in (130mm)
- Shipping Carton Weight
- 6.48lbs (2.94Kg)
